SMT - Innovation for Data Center Monitoring
Innovation and Efficiency in Environmental Monitoring
In today's advanced technology landscape, the need for efficient and reliable monitoring systems has never been more critical. Recognizing this demand, LAB-IA introduced the Monitoring Systems (SMT and SMT+), a comprehensive solution designed to monitor not only temperature, but also humidity, flammable gases, and smoke in sensitive environments such as data centers and research laboratories.
SMT is the result of an innovative multidisciplinary approach that combines the best of the Internet of Things (IoT), next-generation monitoring sensors, and advanced software integration. The use of cutting-edge technologies enabled the creation of a system highly compatible with renowned monitoring platforms such as ZABIXX, CACTI, and PRTG. This was achieved through the implementation of the SNMP and JSON protocols, ensuring smooth and efficient integration with existing systems.
Intuitive Graphical Interface: Understanding the importance of usability, SMT was equipped with an intuitive, accessible graphical interface, allowing users to easily configure and operate the system. This interface simplifies system management, making it accessible to users of all technical levels.
Two versions - SMT and SMT+

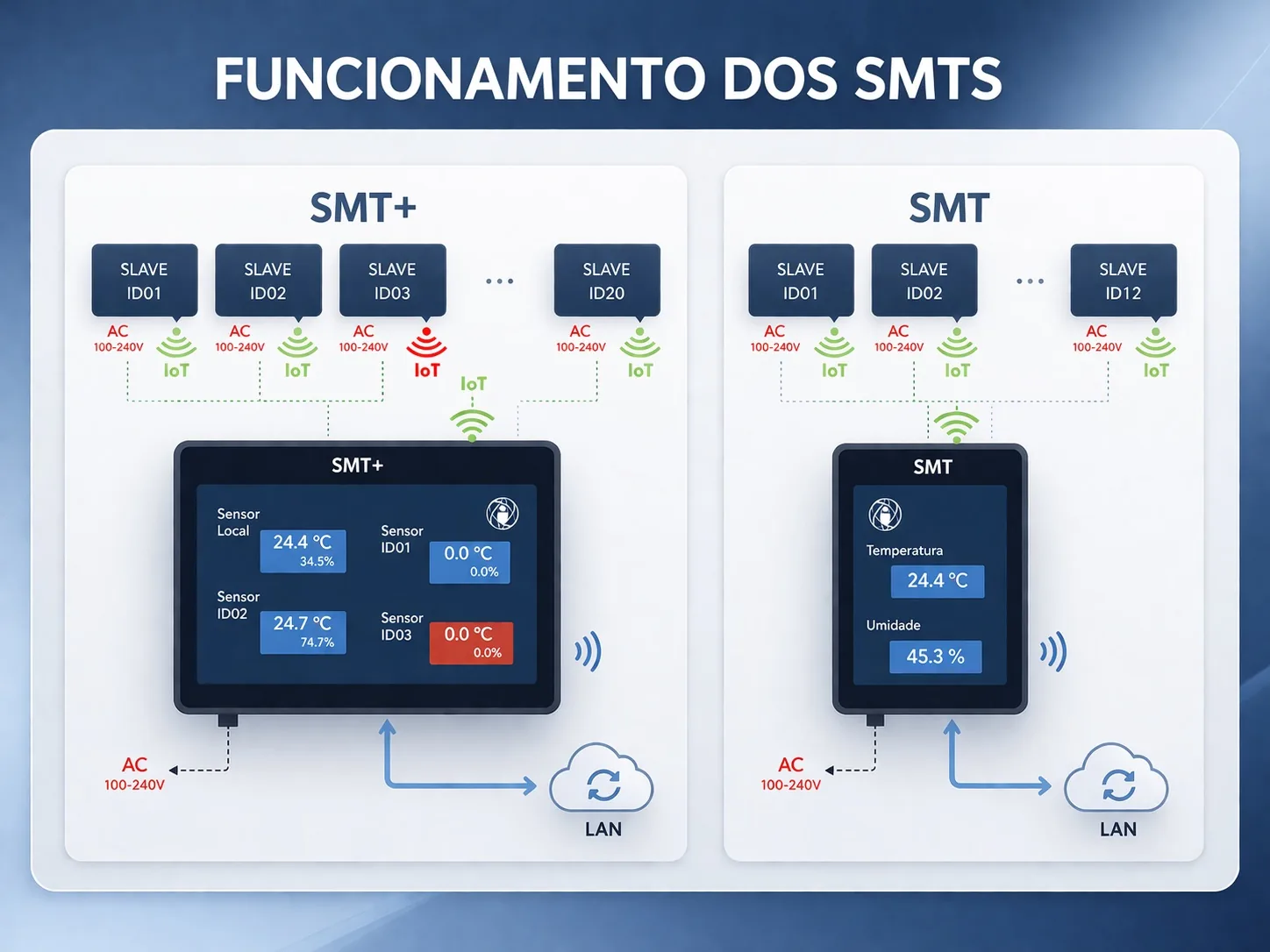

The difference between SMT and SMT+ lies mainly in the enhanced capabilities, dimensions, and additional features that SMT+ offers compared to SMT. Here are the details that highlight the main differences:

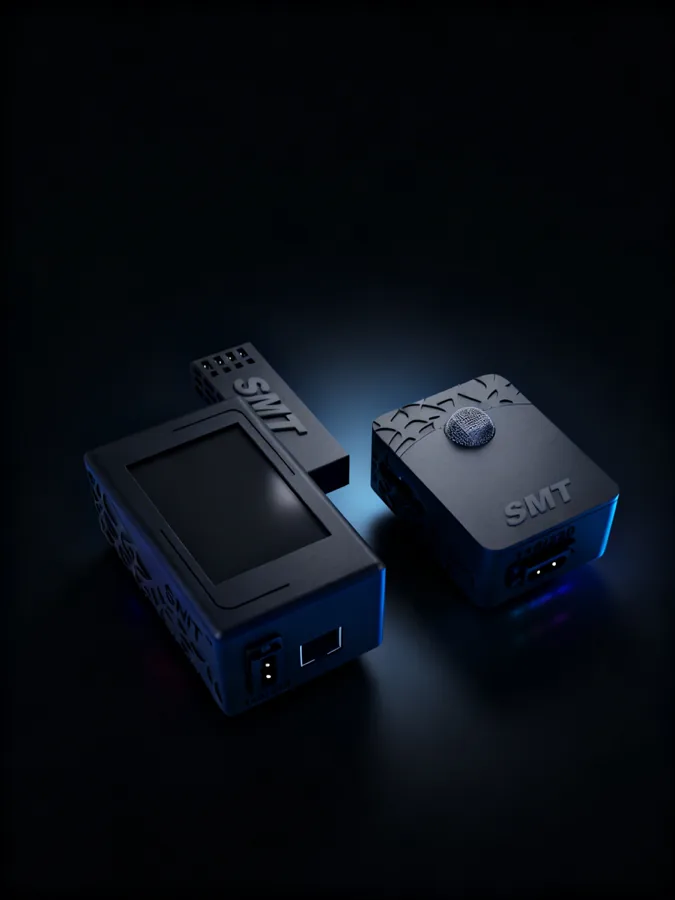

SMT
Temperature Monitoring System
SMT SYSTEM
Real-time monitoring system
3.5” display interface
SNMP e JSON
12 modules with RGB alerts
Wi-Fi and RJ45 connection
Dual voltage
6” main module, 3” secondary units
Display Interface: SMT features a 3.5-inch display interface, providing a clear and concise view of monitored metrics.
Monitoring Capacity: Supports up to 12 slaves (subordinate devices) with RGB alert, allowing a moderate monitoring network.
Connection: Offers both WIFI and RJ45 connectivity, ensuring flexibility in network integration.
Main Module Size: Has a compact size, with the main module measuring 6 inches, making it easy to install in limited spaces.
Slave Size: Maintains a standard size of 3 inches for slave units.
SMT+
Advanced Temperature Monitoring System
SMT+ SYSTEM
Real-time monitoring system
7.1” display interface
SNMP e JSON
Configurable parameters
Wi-Fi and RJ45 connection
Dual voltage
10” main module, 3” secondary units
Display Interface: SMT+ is equipped with a larger 7.1-inch display interface, offering better visualization and user interaction.
Monitoring Capacity: This system supports up to 20 slaves with RGB alert, providing significantly greater monitoring capacity for larger or more complex environments.
Connection: Like SMT, SMT+ offers WIFI and RJ45 connectivity, ensuring versatile network integration.
Main Module Size: SMT+'s main module is larger, measuring 10 inches, which can be attributed to its enhanced capabilities and the need to accommodate a larger display interface.
Slave Size: Slave unit size remains at 3 inches, maintaining consistency in ease of installation and aesthetics.
Flexibility and Adaptability: SMT's integrated design ensures its functionality, flexibility, and adaptability, allowing it to be applied in a variety of environments. Whether in data centers, server rooms, research laboratories, or laboratory greenhouses, SMT offers real-time monitoring of critical parameters for operational safety and efficiency.
Advanced Features of the SMT System
Real-Time Monitoring:
SMT provides constant tracking of environmental conditions, immediately alerting to any deviation from normal parameters.
Compatibility:
With SNMP and JSON support, the system easily integrates with various monitoring platforms.
Versatile Connectivity:
Equipped with WIFI and RJ45 connection, SMT ensures seamless integration with your local network.
Customizable Configuration:
Users can easily configure parameters and alerts through a user-friendly graphical interface.
Advanced Technical Specifications:
SMT comes with a wide range of technical specifications, including detection of a broad range of flammable gases, precise temperature and humidity monitoring, and much more.
SMT vs SMT+
| Description | SMT+ | SMT |
|---|---|---|
| Programmable Resistive Screen | 7.1" | 3.5" |
| Sensor: temperature, humidity, flammable gas, and smoke* | 20 slaves | 12 slaves |
| 20A (AC) current sensor | Yes | No |
| Theme control (colors) | Adjustable | Fixed |
| Configurable visual alert (colors) | RGB | RGB |
| External access protocol | SNMP e JSON | JSON |
| Configurable RJ45 Networking | Yes | Yes |
| Configurable WiFi Networking | Yes | Yes |
| Dual voltage (100 – 240 VAC) | Yes | Yes |
| Other onboard sensors | Yes | Yes |
| Mounting | Metal (with magnets) and screws | Metal (with magnets) |
* Detectable gases: LPG, Methane, Propane, Butane, Hydrogen, Alcohol, Natural Gas, CO, and other flammables.
Technical Specifications – SMT+, SMT, and Secondary Systems
| System Features | |
|---|---|
| IoT device for temperature, humidity, gas, and smoke monitoring for LABORATORIES and DATA CENTERS | |
| Compatible with ZABBIX, CACTI, PRTG, and other systems using SNMP and JSON (SNMP version 1 and 2). | |
| Features a graphical interface for configuring parameters and alerts | |
| Allows data access via browser | |
| Audible and visual alarms with HIGH / LOW settings | |
| RJ45 Ethernet port and WiFi for Local Network connection | |
| Dual-voltage power supply included in devices (100 – 240 VAC) | |
| Sensor Specifications | |
| Sensor temperature range | -28 °C a 80 °C (± 0.4 °C) |
| Humidity | 0 to 100% RH (± 3%) |
| Flammable gas sensors | MQ-2 sensor / detection concentration: 300–10,000 ppm |
| Recommended for Use in | |
| Data centers | |
| Computer server and generator rooms | |
| Research laboratories in general | |
| Laboratory greenhouses | |
| Medical supply temperature monitoring | |
| Central air conditioning systems | |
Usage Recommendations: SMT is highly recommended for a variety of applications, including but not limited to data centers, server rooms, research laboratories, laboratory greenhouses, medical supply temperature monitoring, and central air conditioning systems.
Conclusion: LAB-IA is committed to providing innovative and reliable solutions for monitoring needs. The Temperature Monitoring System (SMT) is a testament to our dedication to offering cutting-edge technology, safety, and operational efficiency. We invite you to explore SMT's capabilities and discover how it can benefit your organization.
